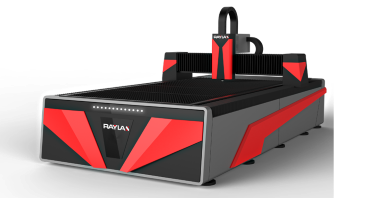

Type B Single table laser cutting machine

Item No.: RLS3015B-1000W
It is newly designed Single Table Fiber Laser Cutting Machine.
Description

1. Application:
Widely used in electrical equipment, kitchen, elevator, advertising signs, autodecoration, sheet metal production, lighting hardware, display equipment, precision parts, metal products and other industries.

2. Processing Materials:
Able to cut a variety of sheet metals,  stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum, manganese steel, various alloy plates, rare Metal and other materials.

3. Product Decription:
RLS3015 fiber laser cutting machine which adopts gantry type structure and used advanced IPG laser generator, which output high energy density laser beam that focus on the work surface.The machine comes with high precision that imported ball screws and linear guide rails as transmission, imported Yaskawa servo motors with high speed, and it is widely used for cutting carbon steel, stainless steel sheets, aluminum alloy ,copper,brass,and other metals for processing industry.



4. Parameter of fiber laser cutting machine:

MODEL RLS3015B-1000W STRUCTURE Gantry type
OUTPUT POWER 1000W DRIVEN STRUCTURE Duel-driven
CUTTING AREA (L*W) 3000*1500mm DRIVEN MODE Servo control
MAX CUTTING THICKNESS 14mm CS; 6mm SS X AXIS STROKE 3020mm
MAX CUTTING SPEED 340m/s(1mm thickness) Y AXIS STROKE 1520mm
MAX ACCELERATED SPEED 1.5G Z AXIS STROKE 150mm
POSITIONING ACCURACY ±0.03 mm COOLING Water chiller
RE- POSITIONING ACCURACY ±0.02 mm AMBIENT TEMPERATURE 5ºC-45ºC
CUTTING GAP 0.1mm BEARING WEIGHT OF TABLE 1000Kgs
CONTINIOUS WORK TIME 24H PROTECTION LEVEL IP54
POWER SUPPLY AC380V±5%(50Hz/60Hz) TOTAL GROSS WEIGHT 4.5Tons
TOTAL POWER <14KW TOTAL DEMENTION(L*W*H) 4300*320*1700mm


5. Advantages of fiber laser cutting machine:
(1)Adopted to import fiber laser generator, with long using life up to 100000 hours and high cutting speed up to 80m/min;
(2)Japan YASKAWA Servo motor with double ball screw driving system, can make sure the cutting high precision especially comparing with the single driver system.
(3)Swiss raytools laser head with auto focusing height follower, which can ensure the constant same
 distance between the head and cutting material
(4)Cypcut cnc cutting System, which has the special funnel design to make collecting more easy.

6. Cutting Samples:
